Back FITOK SilcoNert® 2000 (Sulfinert®) Coated Products
What are FITOK SilcoNert® 2000 (Sulfinert®) Coated Products?
Natural gas samples often contain varying amounts and types of sulfur compounds, which can interfere with reaction or poison catalysts in many petrochemical processes. Because sulfur compounds quickly react with stainless steel surfaces, accurate determination of these compounds is impossible when using untreated sample cylinders. In order to prevent sulfur adsorption, passivation treatment is performed on the surface of the substrate, we also call this passivation technology "silanization", and the passivation layer is also called "SilcoNert® 2000 (Sulfinert®) Coating". SilcoNert® 2000 (Sulfinert®) technique bonds an inert silica layer into the surface of the stainless steel. This layer acts as a barrier, preventing active compounds from reacting with or adsorbing to the stainless steel. Sulfur and mercury compounds exhibit greatly increased stability to SilcoNert® 2000 (Sulfinert®) coated cylinder, which can be applied to the following fields: analytical process, environment detection, downhole sampling from petroleum and natural gas wells, as well as monitoring and control of oil refining and petroleum processes.
A wide variety of parts can benefit from SilcoNert® 2000 (Sulfinert®) Coated Products. In general, if there are any species in your streams which are reactive or corrosive, all metal components in the sample stream should be shielded. When sampling, storing, or transferring organo-sulfur compounds, always classify wetted parts. Plan to use non-adsorptive parts or else plan to passivate all stainless steel parts. This will save possible troubleshooting efforts later in your work.
FITOK and SilcoTek
Cooperating with SilcoTek, the world's leading provider of high performance inert coating by chemical vapor deposition (CVD), FITOK can provide a variety of SilcoNert® 2000 (Sulfinert®) Coated Products.
SilcoNert® 2000 (Sulfinert®) Coated Products

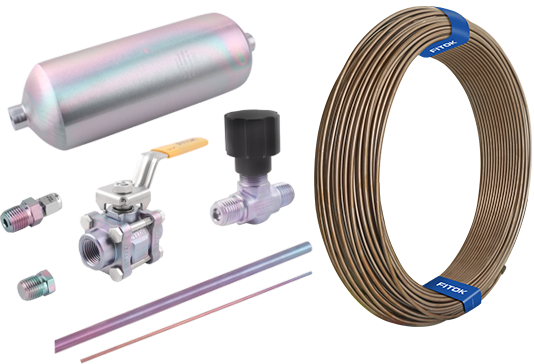

FITOK SilcoNert® 2000 (Sulfinert®) Coated Products include valves, fittings, pressure regulators, sample cylinders, tubing. Product materials can be carbon steel, stainless steel, titanium and nickel alloys.
| • Sample Cylinders |  |
| • Needle Valves | |
| • Ball Valves | |
| • Tubing | |
| • Tube Fittings | |
| • Quick-connects | |
| • Regulators |
Ordering Information
Other coated valves and fittings are also available upon request. Please contact FITOK Group or our authorized distributors for more information. To order SilcoNert® 2000 (Sulfinert®) coated FITOK products, please add “-SI” as a suffix to the standard ordering number.
Example, 6L-SC18-DN4-300-SI.
FAQ:
What are the size limitations for FITOK products with SilcoTek coatings?
Fittings and Valves
FITOK can have the SilcoTek coating for most of the fittings and valves. FITOK send the parts of valves and regulators prior to assembling to SilcoTek for coating and will assemble the parts at FITOK factory under the guidance of our quality systems.
Coiled Tubing
• Coated internally only
• Maximum continuous length:
Tube O.D.
in.
Wall Thickness
in.
Maximum Coil Length
ft (m)
1/16
0.016
200 (60)
1/8
0.028
200 (60)
1/4
3/8
1/2
0.035
600 (180)
400 (120)
300 (90)
Straight Tubing
• Coated internally only by default
• Maximum length: 20 ft (6 Meters)
Sample Cylinders
• Coated the internal, external surfaces and the threads of the cylinder
• The size shown in the catalogs can have the SilcoTek coating. For custom and non-316 stainless steel products, please consult Fitok.
Why does the exterior surface of internally-coated tubing sometimes look different from coil to coil?
|
SilcoTek’s process for treating coiled tubing results in a uniform coating throughout the interior of the tubing from end to end. The exterior surface of coiled tubing is not coated, but it will exhibit a change in appearance after being oxidized by the high temperatures of our CVD coating process. This resulting external appearance will vary based on the specific elemental composition of the tubing substrate. |
 |
How tightly can the tubing be bent?
O.D.
in.
Min. Bend Radius
in. (cm)
<= 1/16"
1" (2.5)
1/8"
2" (5.1)
1/4"
3/8"
4" (10.2)
6" (15.2)
Click here to view guidelines for bending SilcoTek coated tubing.
Please click Products or Catalogs to view more information. contact us directly or contact your nearest authorized distributor for more details!
