Build Your Safe and Efficient Compressed Air Lines with QCA Series Quick-connects

12/09/2020
3136

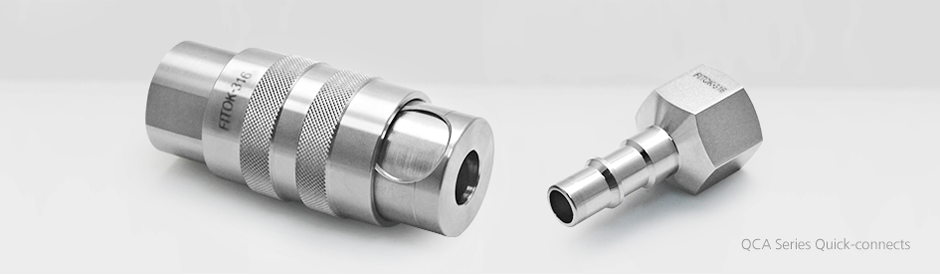

FITOK QCA Series



Introduction





FITOK QCA series quick-connects are designed for connecting high-flow compressed air circuits. Pressure release prior to disconnection eliminates the risk of dangerous hose whipping. Large orifice along with full bore design maximizes air flow and contributes to greater tools efficiency. Benefiting from unique internal structure and high quality materials, the quick-connects deliver reliable sealing performance and save the system from unnecessary energy losses and economic losses caused by leakage.

Features




Safe pressure release design

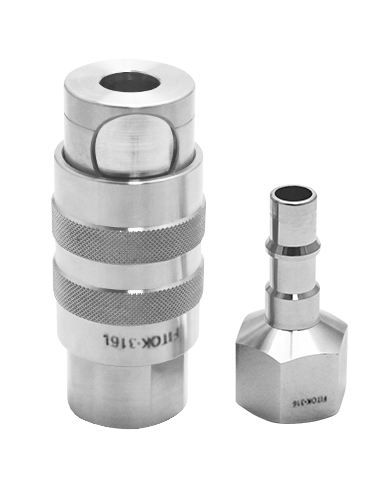

FITOK QCA Series

Orifice size: 11 mm




Avoid hose whipping after disconnection



Large flow path ensures direct air flow to reduce the pressure loss




Working pressure: 232 psig (16 bar)

EPDM O-ring seal



For compressed air or pneumatic lines



Suitable for application in radioactive environments





How It Works





Stem
Body
Exhaust Cavity
Pull the sleeve
Connect
Push the stem into body until it locks. The process is completed in the “exhaust cavity”, a “zero pressure” area isolated from the pressurized upstream circuit.
Open the circuit
Pull the sleeve leftwards to open the circuit, allowing compressed air to pass through.

Button
Push the sleeve
Disconnect
Click the button to disconnect the stem and body. No risk of accidental disconnection.
Close the circuit
Push the sleeve rightwards to close the upstream circuit. Pressure within downstream hose is released, avoiding risk of hose whip on disconnection.



Applications





◎ Compressed air distribution system for nuclear island, conventional island and BOP of nuclear power plant

Instrument compressed air distribution system (WAI) and public compressed air distribution system (WAS) in nuclear island reactor building, nuclear fuel building, nuclear auxiliary building, and nuclear waste auxiliary building

◎ Large pneumatic tools and power control equipment



Please see the product catalog for more information. Should you have any questions, please contact us directly or contact your nearest authorized distributor.
