New Product Launch: FITOK Compact Steel Wire Braided Hydraulic Hoses
Introduction
FITOK HCH Series Compact Steel Wire Braided Hydraulic Hoses are designed with a synthetic rubber core that is resistant to oil-based and water-based hydraulic fluids. They feature multiple layers of high-tensile steel wire braiding for reinforcement, along with a weather-resistant, oil-resistant synthetic rubber cover. This construction provides excellent high-pressure resistance and a minimal bend radius. These hoses are primarily used with oil-based liquids such as hydraulic oil, gasoline, diesel, lubricating oil, as well as biodegradable hydraulic fluids, fire-resistant synthetic polyol esters, and other similar media.
Features
- Cover: Weatherproof, oil-resistant synthetic rubber
- Reinforcement: Double-layer of high-tensile steel wire braid
- Core tube: Synthetic rubber for oil based or water based fluids
- End connection material: Stainless steel
- Nominal hose size: 1/4" to 1/2"
- End connection sizes: 1/4" to 1" and 6 mm to 25 mm
- Working pressure up to 5800 psig (400 bar)
- Working temperature: -40°F to 212°F (-40°C to 100°C)
Technical Data
Nominal Hose Size | Inside Diameter | Min. Bend Radius | Working Pressure at 70°F (20℃) | Min. Burst Pressure at 70°F (20℃) | Standard |
in. (mm) | in. (mm) | in. (mm) | psig (bar) | psig (bar) | |
1/4 (6.4) | 0.26 (6.6) | 2.95 (75) | 5800 (400) | 23200 (1600) | IS0 11237 2SC EN 857 2SC |
1/2 (12.7) | 0.51 (13.0) | 5.12 (130) | 3990 (275) | 15950 (1100) |

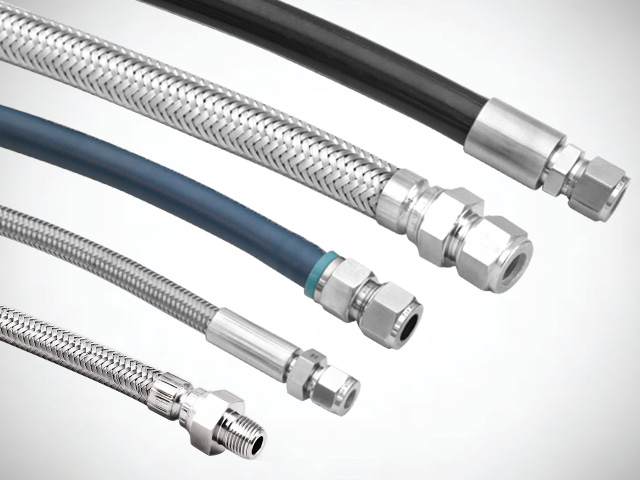

In addition to HCH Series Compact Steel Wire Braided Hydraulic Hoses, FITOK offers Metal Flexible Hoses MH/MM Series, PTFE-Lined Stainless Steel Braided Hoses PS Series, Multipurpose Push-on Hoses MP Series, Thermoplastic Hoses TH Series, and Medium and High Pressure Hoses HHP Series for various applications.
Please see the Hose and Connectors Catalog for more information. Should you have any questions, please contact us directly and we will reach you soon.
