Introduction
FITOK RDDC Series Two-Stage Diaphragm Regulators feature a two-stage pressure reduction design. The combination of a metal diaphragm and a free poppet ensures excellent sensitivity and stable outlet pressure. This configuration makes these regulators ideal for low to medium flow applications that require steady outlet pressure.
Features
- Lift poppet is made of Alloy C-276, offering excellent corrosion resistance
- Metal-to-metal seal between valve body and diaphragm provides ensured sealing performance
- Two-stage pressure reduction design ensures precise and stable outlet pressure
- The bonnet includes a captured vent hole, allowing media to be vented to a designated location in the event of accidental diaphragm rupture
Technical Data
| Port Size | 1/4", 3/8" or 1/2" | ||
| Max. Working Pressure | 4500 psig (310 bar) | ||
| Outlet Pressure Range | 0 ~ 25 psig (0 ~ 1.7 bar) | ||
| 0 ~ 50 psig (0 ~ 3.4 bar) | |||
| 0 ~ 100 psig (0 ~ 6.9 bar) | |||
| 0 ~ 150 psig (0 ~ 10.3 bar) | |||
| 0 ~ 250 psig (0 ~ 17.2 bar) | |||
| Flow Coefficient (Cv) | 0.06 | ||
| Working Temperature | PCTFE：-40 ~ 165°F (-40 ~ 74°C) Polyimide：14 ~ 194°F (-10 ~ 90°C) |
||
| SPE (Supply Pressure Effect) | 0.01 psig per 100 psig source pressure change | ||
| Leak Rate (Helium) | External | Inboard | ≤ 2×10-10 std cm3/s |
| Outboard | ≤ 2×10-9 std cm3/s | ||
| Internal | ≤ 4×10-8 std cm3/s | ||

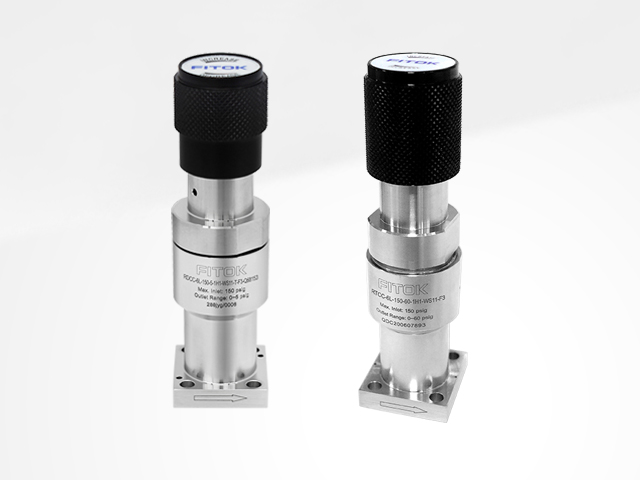

In addition to RDDC Series Two-Stage Diaphragm Regulators, FITOK offers RDGC Series General Diaphragm Regulators, RTGC Series General Tied Diaphragm Regulators, RDCC Series Miniature Diaphragm Regulators and RTCC Series Miniature Tied Diaphragm Regulators.
Please see the RDDC Series Two-Stage Diaphragm Regulators Catalog for more information. Should you have any questions, please contact us directly and we will reach you soon.
