New Product Launch: FITOK High Purity Ball Valves

08/11/2022

5332

FITOK High Purity Ball Valves

Introduction

FITOK BGP series 3-piece high purity ball valves and BRP series hex bar high purity ball valves are designed to meet the requirements of degreasing, low working pressure, high flow rate and bi-directional flow for the clean dry air (CDA) and bulk gas distribution line, which are widely used in specialty gas, semiconductor and chemical industries.

Features

3-Piece High Purity Ball Valve BGP Series

Maximum connection size up to 1"
Various connection types available, including butt weld fittings, tube fittings and face seal fittings
Connection tube in customized length available, the sulfur content of the welded connection material is controlled to 0.003-0.008%
Locking device optional

Hex Bar High Purity Ball Valve BRP Series

Maximum connection size up to 5/8"
Optional connection types including tube fittings and face seal fittings
Locking device optional

Technical Data


Series	BGP series	BRP series
Material/specification	CF8M/A351	316 SS/ASTM A479
Working pressure	Up to 1000 psig (69.0 bar)
Working temperature	-20 °F to 450 °F (-28 °C to 232 °C)
Orifice	0.18" (4.6 mm) to 0.79" (20.0 mm)	0.19" (4.8 mm) to 0.35" (8.9 mm)
Wetted surface roughness	Ra 25 μin. (0.6 μm)
Helium leak rate	≤ 1x10^-8 std cm³/s
Polishing process	Machine finished
Cleaning and packaging process	Special cleaning and packaging (FC-02)

Please see the High Purity Ball Valve Catalog for more information. Should you have any questions, please contact us directly and our sales and technical support will reach you soon.

Related Articles:

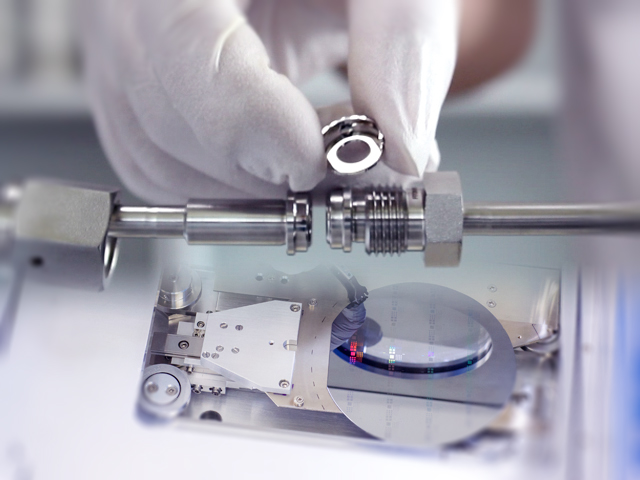

Metal Gasket Face Seal Fittings for the Semiconductor Industry

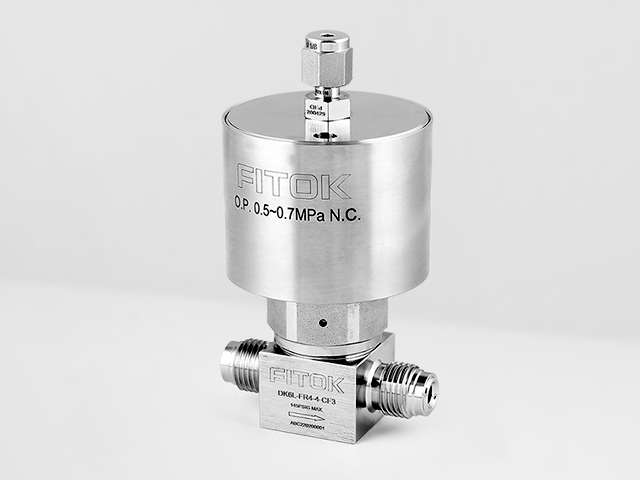

FITOK High Temperature Diaphragm Valves

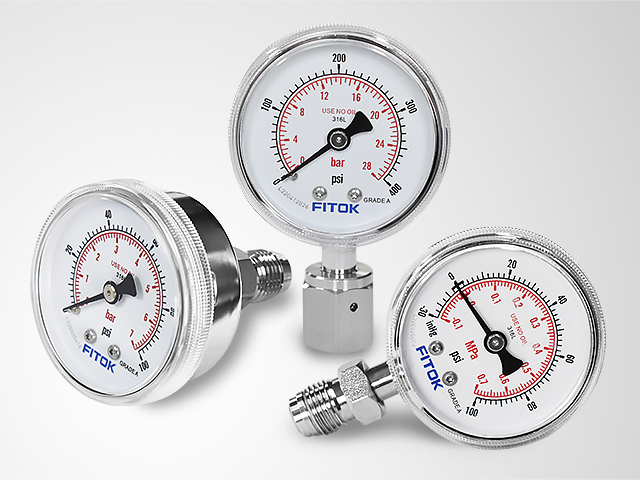

FITOK Ultra High Purity Pressure Gauges
