FITOK 2.6% Mo Seamless Stainless Steel Tubing

02/04/2021
7206

Steel Tubing



What are the advantages of enhanced-316/316L tubing





Except for ordinary type 316/316L steel, FITOK tubing can also be supplied in enhanced-316/316L. Ni, Cr, and Mo contents of the material are in close approximation to upper values defined in ASTM requirements, among which, molybdenum content exceeds 2.6%. With increased molybdenum content, enhanced-316/316L tubing shows improved pitting corrosion resistance and performs better in the corrosive marine environment containing chlorides.

Meanwhile, as the material maintains a stable organizational structure, enhanced-316/316L tubing is ideally used in high-pressure hydrogen applications where hydrogen embrittlement exists.

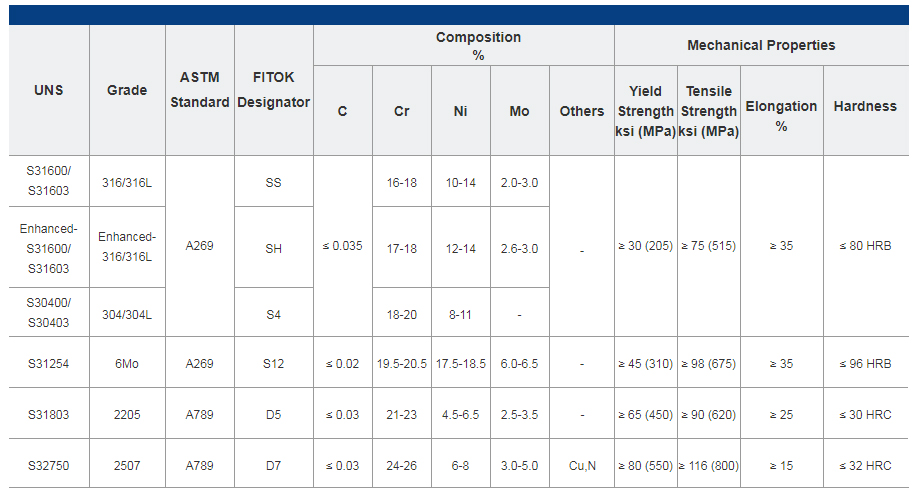

Chemical compositions and mechanical properties of the tubing are detailed as below:

tubing are detailed

The above is for the FITOK TMP series only. For other series, please refer to FITOK Tubing Catalog.

Scope of supply for enhanced-316/316L tubing

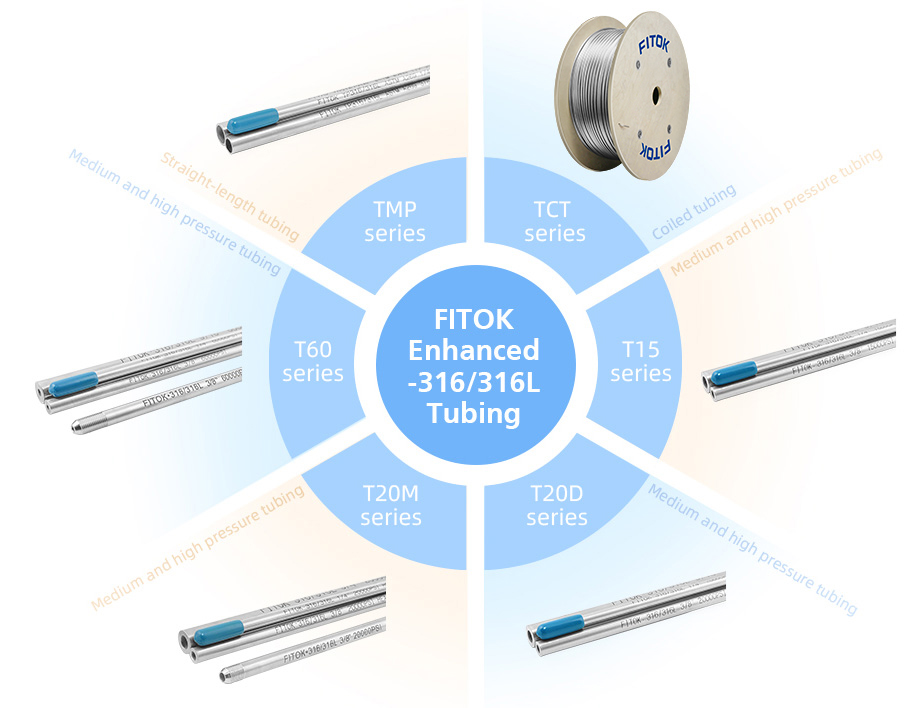

Tubing available in enhanced-316/316L includes TMP series instrumentation straight-length tubing, TCT series coiled tubing, and medium and high-pressure tubing (T15, T20D, T20M, and T60 series).

The factory stocks a variety of sizes to meet customer requirements and shorten lead time. For more information, please contact FITOK Group or our authorized distributors.

316/316L tubing

Quality assurance

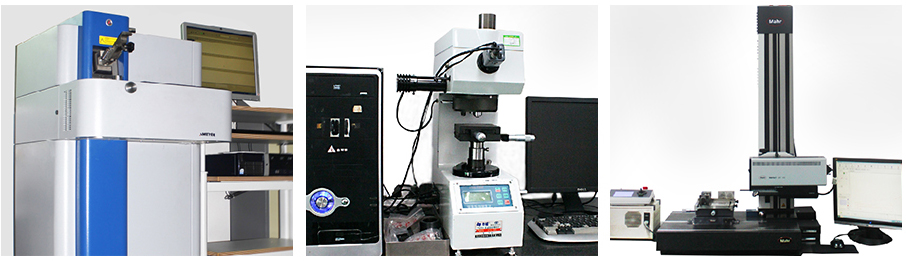

Before leaving the factory, FITOK enhanced-316/316L tubing has to go through a series of strict tests, including chemical analysis, eddy current test, pressure test, hardness test, tensile test, flaring test, corrosion test, grain size test, surface roughness test.

316/316L tubing

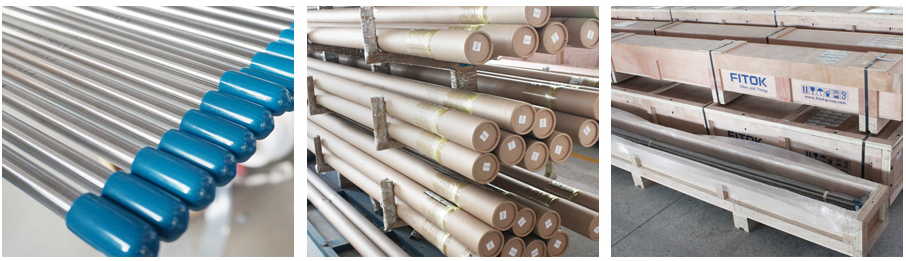

To protect the tubing from damage during transport, special attention is paid to packaging:

  • For seamless straight-length tubing, tubing ends polyethylene capped; tubing bulk packed in cardboard tubes or wooden cases.

316/316L tubing

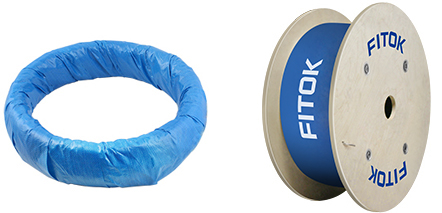

  • For seamless coiled tubing, tubing ends are capped and tubing is then packed in coils and wrapped with a polyethylene film. To require packaging with wooden reel, please contact FITOK group or our authorized distributors.

316/316L tubing

For SilcoNert® 2000 (Sulfinert®) coated FITOK Tubing, please click here.
Please see the product catalog for more information. Should you have any questions, please contact us directly or contact your nearest authorized distributor.
